ISCON Surgicals Limited offers a high-quality range of Intravenous (IV) Cannula designed for reliable venous access and optimized patient comfort. Manufactured with advanced materials and precision engineering, our IV cannulas are suitable for various medical applications including transfusion therapy. All variants undergo ETO sterilization and are available in both Soft & Hard Blister packaging.
IV Cannula (Intravenous Cannula)
Available Types:

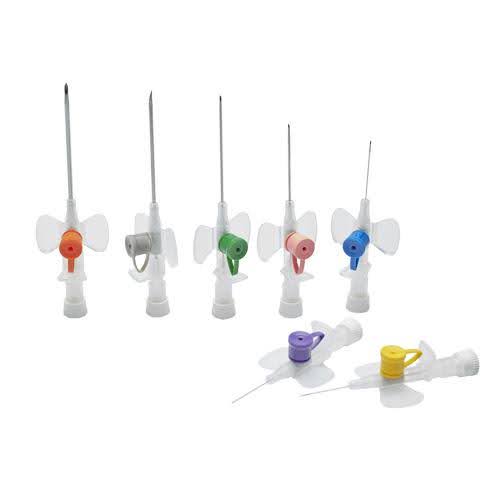

1. With Wings & Injection Port: Features a silicone-tipped stainless steel needle, one-way injection valve with protective cap, and angled wings for secure fixation. Includes radio-opaque lines for radiographic detection, luer cap, and color-coded body as per ISO standards.

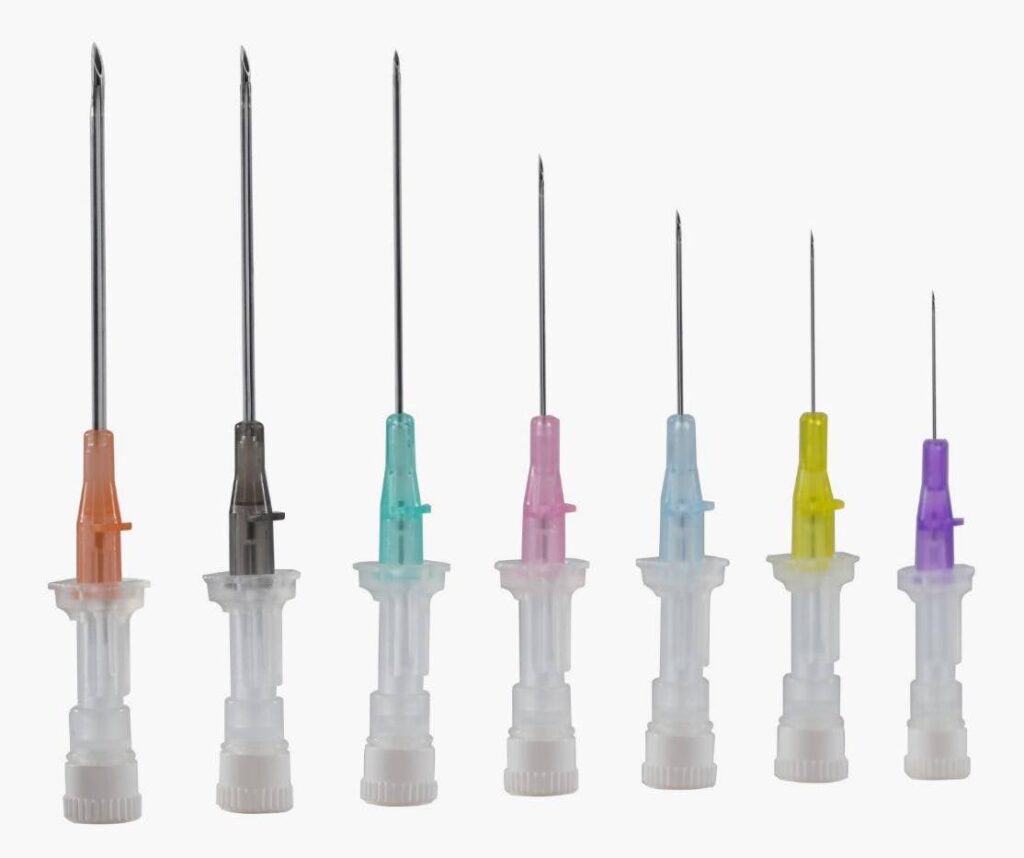

2. With Wings & Without Injection Port: Designed with a flashback chamber for quick venous visualization, ergonomic wings for safe handling, and a needle cover for added protection. Color-coded and equipped with a triple-point needle and standard luer taper.

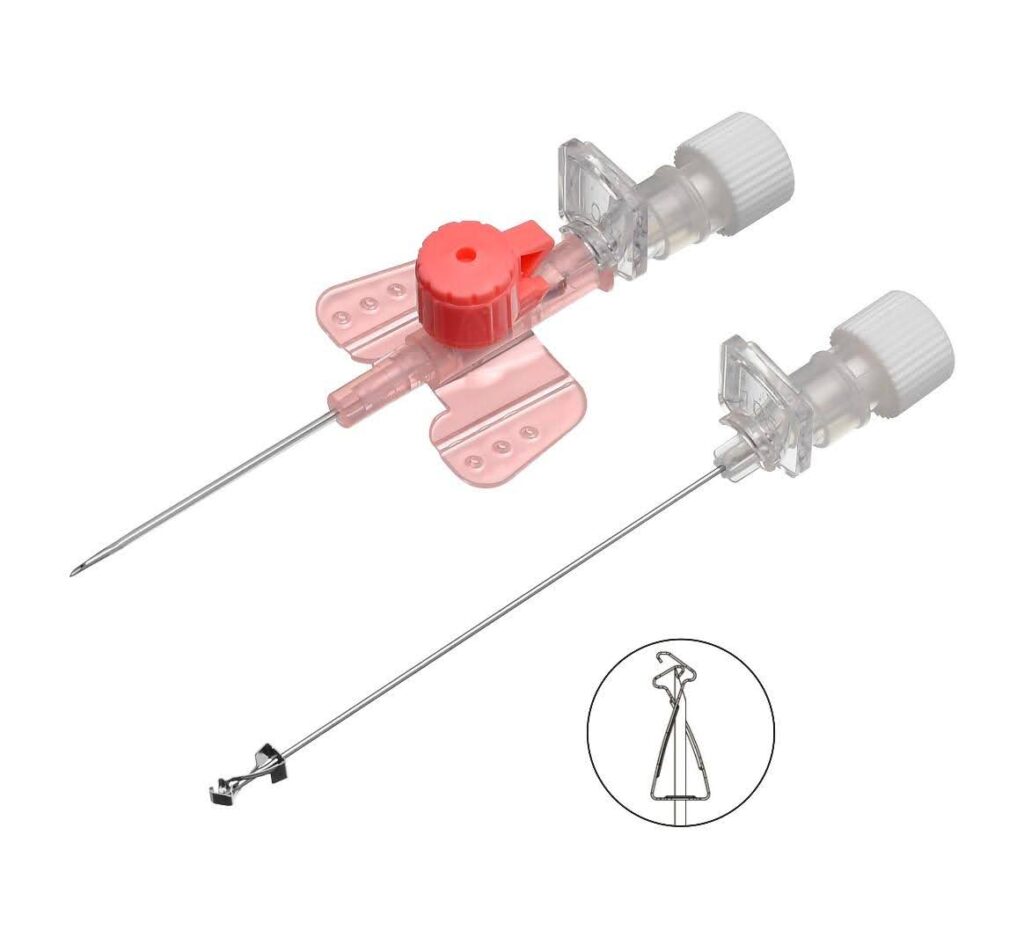

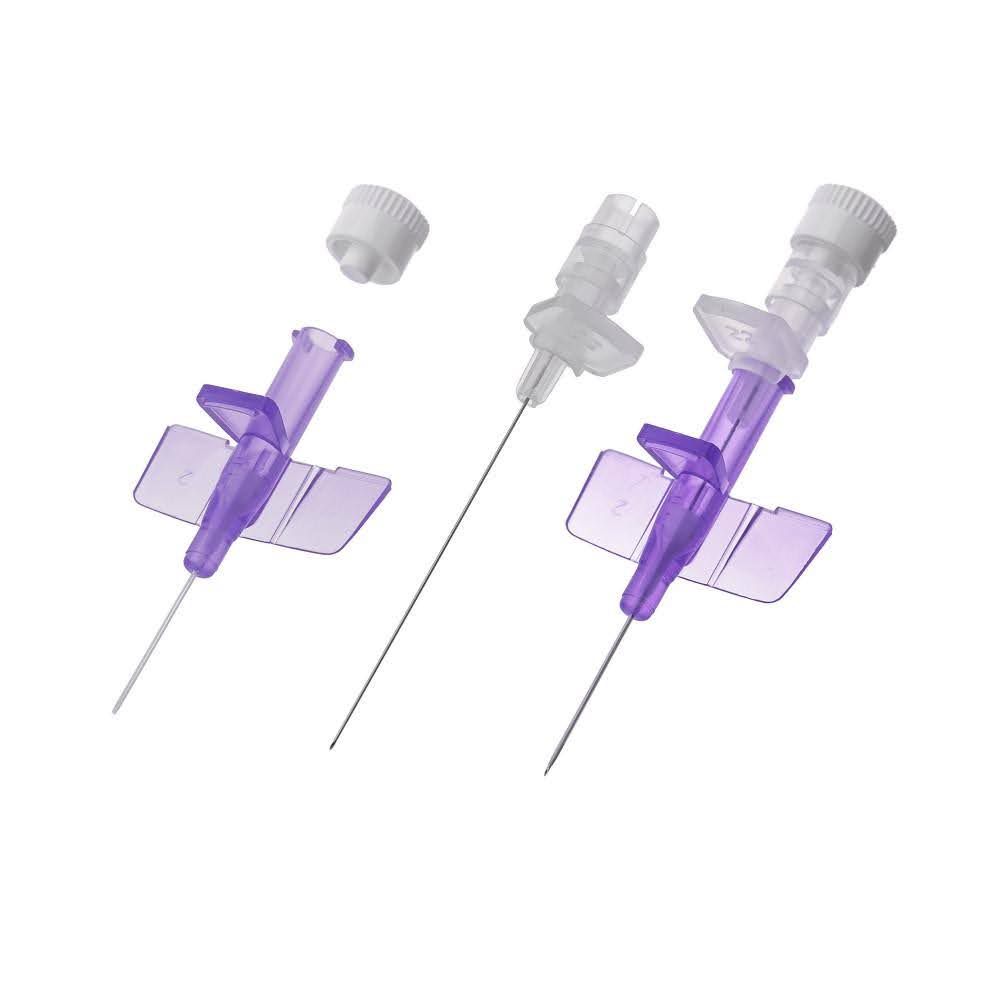

3. With Small Wings & Without Injection Port: Ideal for neonatal care, this version has flexible small wings to minimize trauma. Available in 24G & 26G with 19mm length, it includes a color-coded body, triple-point needle, and radio-opaque Teflon catheter.
4. Without Wings & Without Injection Port: Compact and ergonomic for single-access use, offering minimal discomfort. Comes with a color-coded body, triple-point needle, and radio-opaque Teflon catheter, adhering to international standards.
Available in: Hard Blister Pack
Color Coding of IV Cannulas
| Gauge (G) | Catheter OD (mm) | Catheter ID (mm) | Catheter Length (mm) | Flow Rate (ml/min) | Common Uses |
|---|---|---|---|---|---|
| 14 G | 2.1 mm | 1.7 mm | 45 mm | 270 ml/min | Rapid blood transfusion, trauma, emergency |
| 16 G | 1.7 mm | 1.3 mm | 45 mm | 180 ml/min | Blood transfusion, surgery, large volume fluids |
| 17 G | 1.5 mm | 1.2 mm | 45 mm | 125 ml/min | Blood transfusion, surgery |
| 18 G | 1.3 mm | 0.9 mm | 32-45 mm | 90 ml/min | Blood transfusion, IV fluids, general use |
| 20 G | 0.9 mm | 0.6 mm | 32 mm | 60 ml/min | General IV use, medications, IV fluids |
| 22 G | 0.7 mm | 0.4 mm | 25 mm | 36 ml/min | Pediatrics, small veins, IV medications |
| 24 G | 0.6 mm | 0.4 mm | 19 mm | 20 ml/min | Pediatrics, neonatal, elderly patients, delicate veins |
| 26 G | 0.45 mm | 0.2 mm | 19 mm | 13 ml/min | Neonates, fragile veins, very fine IV use |

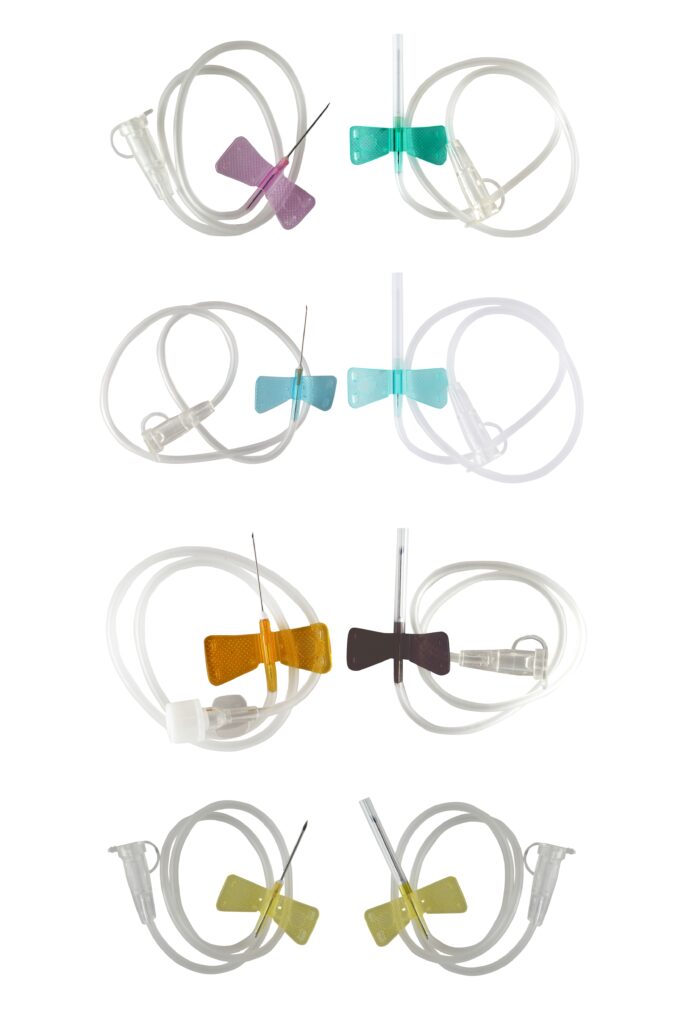

Scalp Vein Set
The Scalp Vein Set, also known as the Butterfly Needle Set, is used for venipuncture and intravenous (IV) infusion. It is ideal for drawing blood or administering medications directly into a vein with ease and comfort.
Available Variants
- Standard Scalp Vein Set (Normal SV Set)
A conventional winged infusion set designed for smooth blood collection and IV administration. - Safety Scalp Vein Set
Incorporates a safety mechanism to prevent accidental needle-stick injuries, enhancing user and patient safety.
Key Features
- Available in 20G to 25G, ISO 8536-4 compliant.
- Soft, flexible, kink-free tubing enables easy removal and safe handling.
- Wings ensure stable positioning on the skin.
- Siliconized stainless steel needles for painless insertion and removal.
- Color-coded according to ISO standards for easy identification.
- Available with Luer Slip or Luer Lock connectors.
- ETO Sterilized individual packs.
Additional Features – Safety SV Set
- Built-in safety cover helps prevent needle-stick injuries.
- Secure tip cap for needle protection post-use.
Super fine needle reduces trauma during insertion/removal.
